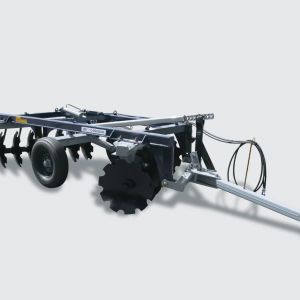

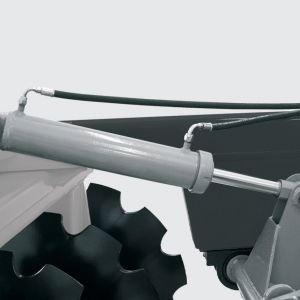

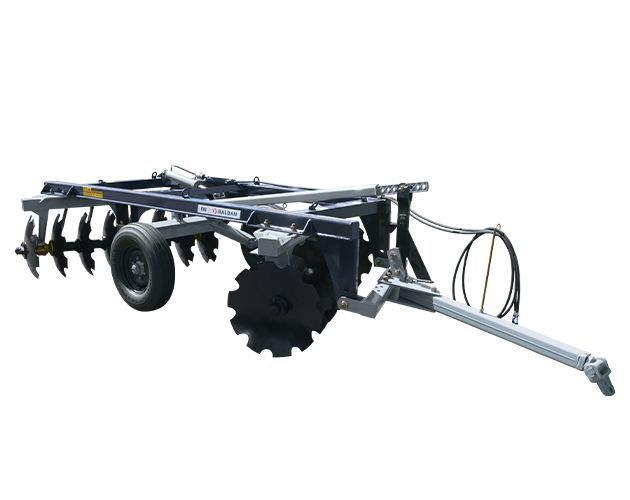

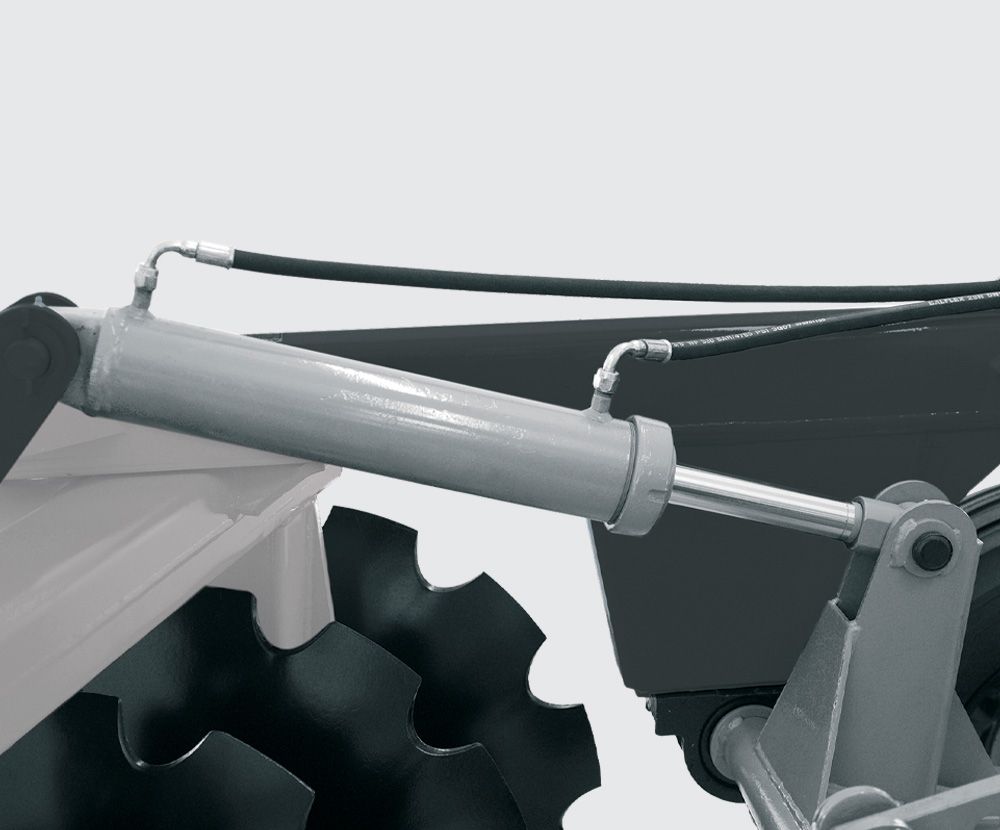

The BALDAN CRI Remote Control Intermediate harrow was born already absolute sales leader in its category; it has a tubular structure with high-strength beams high-quality steel, with 270 mm spacing between discs and weight x discs x cutting angle distribution, its work is unmistakable. Wheels linked to cylinders facilitate maneuvers, depth control and transport over long distances.
| Shaft Diameter | 1.5/8" |
| Spacing between discs | 270 mm |
| Working depth | 150-250 mm |
| Model | Nr of Discs |
Disc Diameter (ø) |
Working Width (mm) |
Approx. Weight (Kg) |
Tractor Power (Hp) |

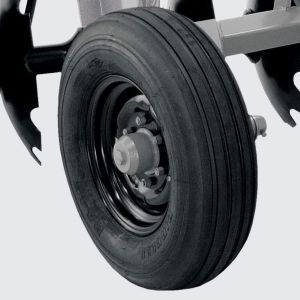

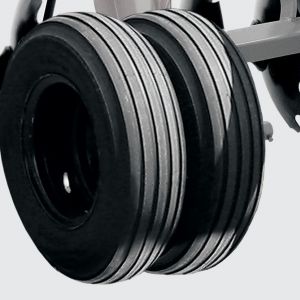

Ground Wheel |
|
|---|---|---|---|---|---|---|---|
| 26" | 28" | ||||||
| CRI | 12 | 26"-28" | 1500 | 1339 | 1420 | 71-76 | Single |
| CRI | 14 | 26"-28" | 1750 | 1405 | 1503 | 83-88 | Single |
| CRI | 16 | 26"-28" | 2000 | 1780 | 1893 | 95-100 | Single |
| CRI | 18 | 26"-28" | 2300 | 1920 | 2049 | 106-114 | Single |
| CRI | 20 | 26"-28" | 2550 | 2012 | 2155 | 118-126 | Single |
| CRI | 22 | 26"-28" | 2835 | 2103 | 2248 | 130-138 | Single |
| CRI | 24 | 26"-28" | 3100 | 2209 | 2359 | 142-151 | Single |
| CRI | 26 | 26"-28" | 3350 | 2311 | 2472 | 154-165 | Single |
| CRI | 28 | 26"-28" | 3650 | 2383 | 2558 | 165-177 | Single |
| CRI | 30 | 26"-28" | 3925 | 2453 | 2641 | 177-189 | Single |
| CRI | 32 | 26"-28" | 4200 | 3689 | 3890 | 189-202 | Dual |
| CRI | 36 | 26"-28" | 4700 | 4172 | 4397 | 213-227 | Dual |
| CRI | 40 | 26"-28" | 5250 | 4499 | 4750 | 236-252 | Dual |
| CRI | 44 | 26"-28" | 5800 | 4719 | 4995 | 260-278 | Dual |
