Designed with an innovative design and manufactured with robustness to work at a superior depth, making for a perfect incorporation of waste from previous years, this comes to meet the need of the farmer to face the most varied challenges of harrowing, such as degraded pasture land, reform of sugar cane fields, as well as for working the soil profile.

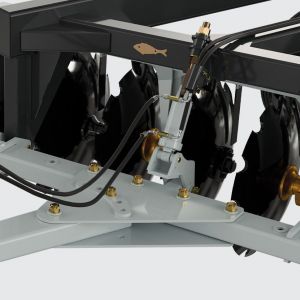

It has a head displacement adjustment system and 500mm spacing discs, these differentials provide students with an optimization in their field work.
| Working Widht | 200 - 400mm |

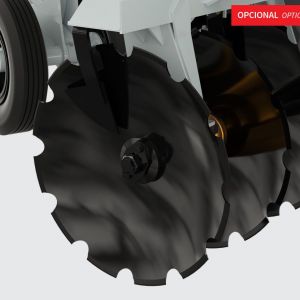

| Diameter of Discs | 36" - 38" - 40" - 42" |
| Axle Diameter | 2.1/2" |
| Disc Spacing (mm) | 500 |

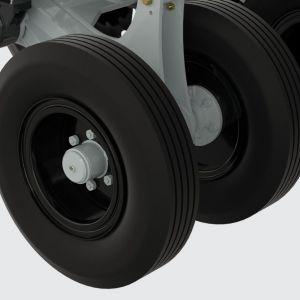

| Wheels | 900x20 - 14 lonas |
| Model | Nº of Discs | Working Widht | Number of Tires | Approximate Weight With 900x20 Tires | Tractor Power(Hp) | |||
|---|---|---|---|---|---|---|---|---|
| (mm) | 36" (Kg) | 38" (Kg) | 40" (Kg) | 42" (Kg) | ||||
| GSPCR-E | 12 | 2957 | 2 | 5318 | 5370 | 5466 | 5569 | 280 - 310 |
| GSPCR-E | 14 | 3405 | 2 | 5866 | 5926 | 6078 | 6159 | 310 - 340 |
| GSPCR-E | 16 | 3909 | 4 | 7301 | 7370 | 7489 | 7635 | 360 - 400 |
| GSPCR-E | 18 | 4371 | 4 | 7763 | 7840 | 7984 | 8138 | 400 - 430 |
| GSPCR-E | 20 | 4828 | 4 | 8099 | 8184 | 8345 | 8516 | 430 - 460 |
| GSPCR-E | 22 | 5292 | 4 | 8428 | 8522 | 8699 | 8887 | 460 - 500 |
| GSPCR-E | 24 | 5759 | 4 | 8750 | 8852 | 9045 | 9250 | 510 - 540 |
