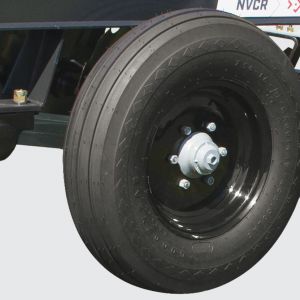

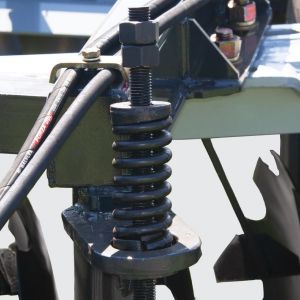

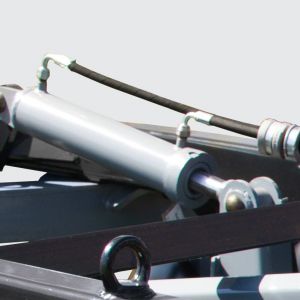

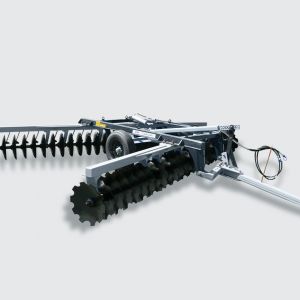

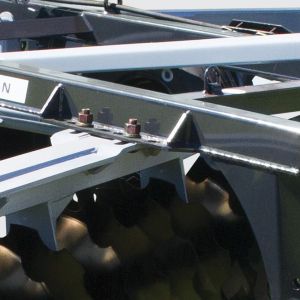

The BALDAN NVCR Remote Control Leveling Harrow was developed based on farmers’ opinions, it is built with high-strength tubular beams and high quality standards combined with the versatility of this model in lump breaking operations, soil leveling, incorporation of herbicides and even in reduced tillage, make it sales leader in the category. The transport system with tires driven by hydraulic control streamlines operations and allows optimal control of the working depth and maneuverability and transportation, the sections are closed during transport, which can be driven hydraulically or through springs.
| Diameter of Discs (ø) | 20" - 22" |
| Shaft Diameter (ø) | 1.1/4" |
| Working Depth (mm) | 50 - 150 |
| Wheels Set | Simples |
| Model | NR of Discs | Working Width | Disc Spacing (mm) |
Aprox. Weight (Kg) |
Tractor Power (Hp) |
|
|---|---|---|---|---|---|---|
| 20" | 22" | |||||
| NVCR | 28 | 2350 | 175 | 1183 | 1219 | 73 - 79 |
| NVCR | 32 | 2700 | 175 | 1279 | 1320 | 83 - 89 |
| NVCR | 36 | 3050 | 175 | 1352 | 1399 | 93 - 100 |
| NVCR | 40 | 3420 | 175 | 1480 | 1532 | 104 - 122 |
| NVCR | 42 | 3600 | 175 | 1529 | 1583 | 110 - 120 |
| NVCR | 44 | 3760 | 175 | 1558 | 1615 | 115 - 120 |
| NVCR | 48 | 4100 | 175 | 1752 | 1814 | 125 - 135 |
| NVCR | 52 | 4450 | 175 | 1851 | 1918 | 135 - 145 |
| NVCR | 56 | 4800 | 175 | 1944 | 2017 | 145 - 150 |
| NVCR | 28 | 2700 | 200 | 1243 | 1279 | 75 - 85 |
| NVCR | 32 | 3100 | 200 | 1321 | 1362 | 85 - 95 |
| NVCR | 36 | 3500 | 200 | 1447 | 1494 | 100 - 105 |
| NVCR | 40 | 3900 | 200 | 1535 | 1587 | 110 - 115 |
| NVCR | 42 | 4100 | 200 | 1650 | 1704 | 115 - 120 |
| NVCR | 44 | 4300 | 200 | 1753 | 1810 | 125 - 135 |
| NVCR | 48 | 4700 | 200 | 1864 | 1926 | 135 - 140 |
| NVCR | 52 | 5100 | 200 | 1946 | 2013 | 140 - 153 |
| NVCR | 56 | 5500 | 200 | 2074 | 2147 | 153 - 167 |
