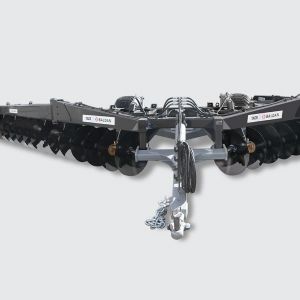

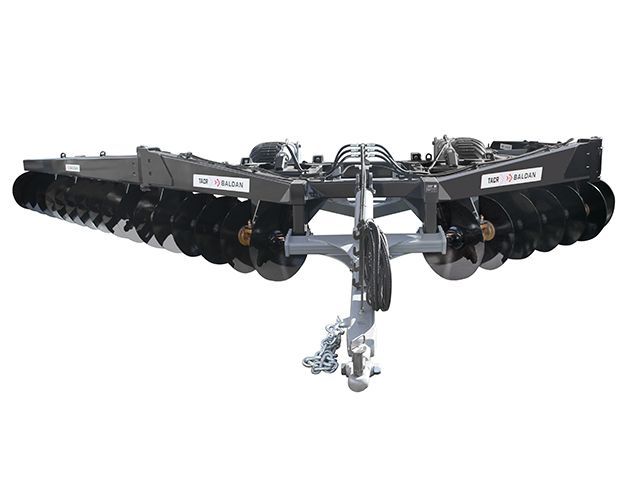

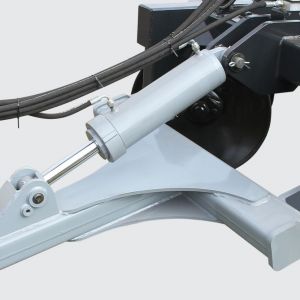

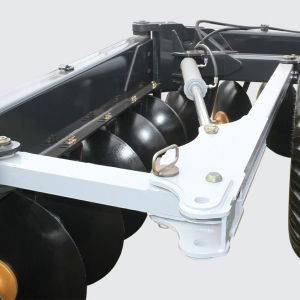

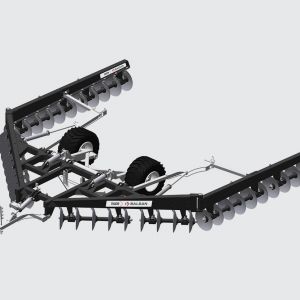

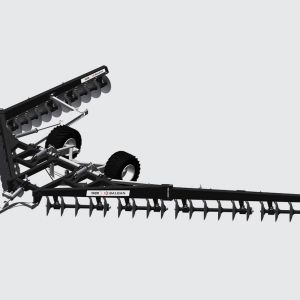

Developed for construction and renovation of wide base terraces in areas with slopes of up to 12 degrees. To facilitate transport, the side frames are provided with hydraulic articulating devices that allow the operator to articulate the terraceador without leaving the seat, providing convenience and speed in this operation.
| Model | NR of discs | Working Width mm |
Approximate Weight Kg |
Tractor Power 4x4 hp |
|---|---|---|---|---|
| Opening hydraulic | 24 | 9528 | 5278 | 165 - 210 |
| Opening hydraulic | 30 | 11576 | 6070 | 210 - 260 |
| Opening hydraulic | 34 | 12942 | 6411 | 240 - 300 |
| Opening hydraulic | 40 | 14990 | 7372 | 280 - 350 |
| Opening manual | 24 | 9528 | 5174 | 165 - 210 |
| Opening manual | 30 | 11576 | 5966 | 210 - 260 |
| Opening manual | 34 | 12942 | 6411 | 240 - 300 |
| Disc Spacing mm |
Disc Diameter Ø | Axle Diameter Ø |

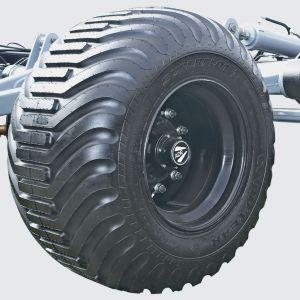

Ground Wheel |
|---|---|---|---|
| 450 | 28” | 2.1/4” | Single |
